Compact Filters

V-cell compact filters, M6 to F9, for high airflow at low pressure drop

Compact (V-cell) filters pack a large media area into a small footprint: high-grade filter paper is mini-pleated and arranged in V-banks inside a rigid plastic frame.

The large media area keeps pressure drop low even at high airflow, which lowers fan energy. The light, rigid construction makes handling and installation easy.

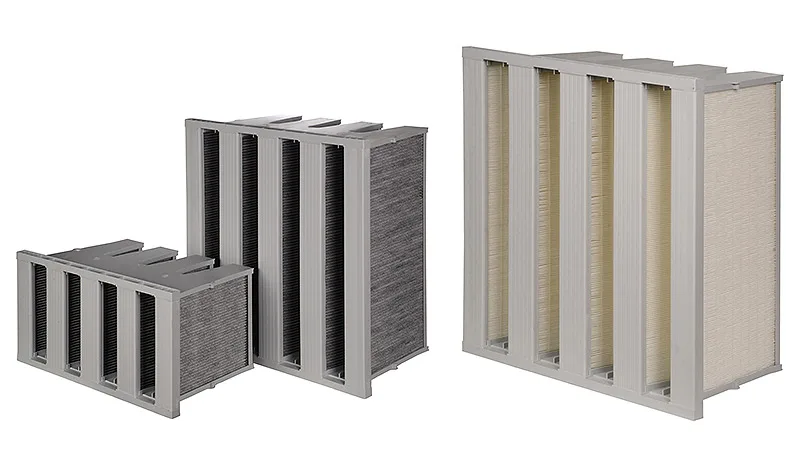

Compact Filters

Key features

  • Large media area in a compact frame
  • Low pressure drop at high airflow
  • Lightweight, rigid plastic construction
  • Classes M6, F7, F8 and F9

Technical specifications

Filter classM6 / F7 / F8 / F9 (EN 779) — ePM10 80% to ePM1 90% (ISO 16890)
FramePlastic
MediaMini-pleated glass fibre

Applications

Pre-filtration in air handling units; pre-filters for cleanrooms and fine filtration; hospitals and hygienic environments; industrial plants that require fine filtration.

Product range

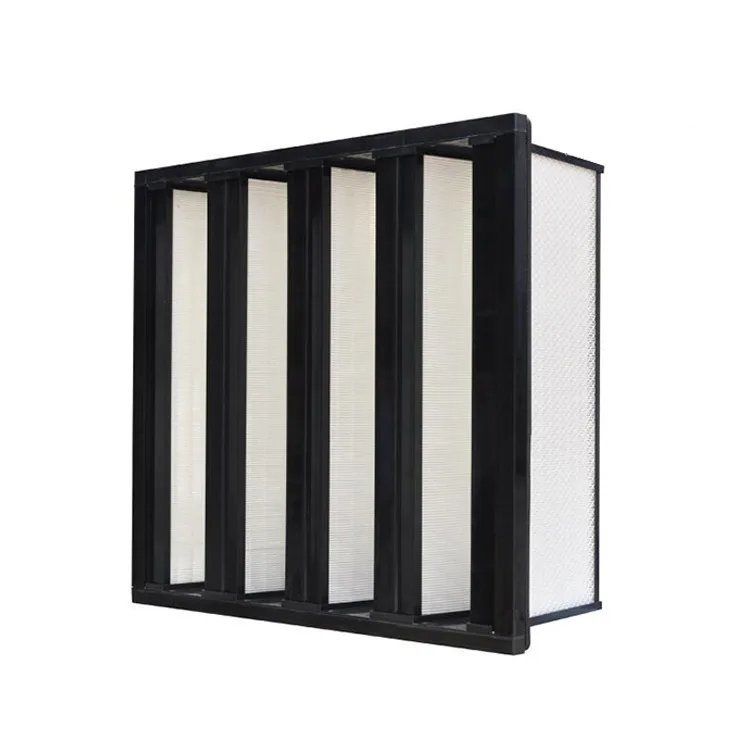

Compact filter range

Compact filter range
Class
EN 779		 Class
ISO 16890		 Dimensions (W×H×D)
mm		 Airflow
m³/h		 Media area
m²		 Initial pressure drop
Pa		 Final pressure drop (max.)
Pa		 Weight
kg
M6ePM10 80%592×287×292212591004503.5
M6ePM10 80%592×490×2923500151004505.4
M6ePM10 80%592×592×2924250181004506.5
F7ePM1 60%592×287×292212591154503.5
F7ePM1 60%592×490×2923500151154505.4
F7ePM1 60%592×592×2924250181154506.5
F8ePM1 70%592×287×292212591254503.5
F8ePM1 70%592×490×2923500151254505.4
F8ePM1 70%592×592×2924250181254506.5
F9ePM1 90%592×287×292212591554503.5
F9ePM1 90%592×490×2923500151554505.4
F9ePM1 90%592×592×2924250181554506.5
Other dimensions and classes are available on request.

Need a quote or a non-standard size?

Send us the dimensions, filter class and quantity. We reply with price and delivery time within one business day.
