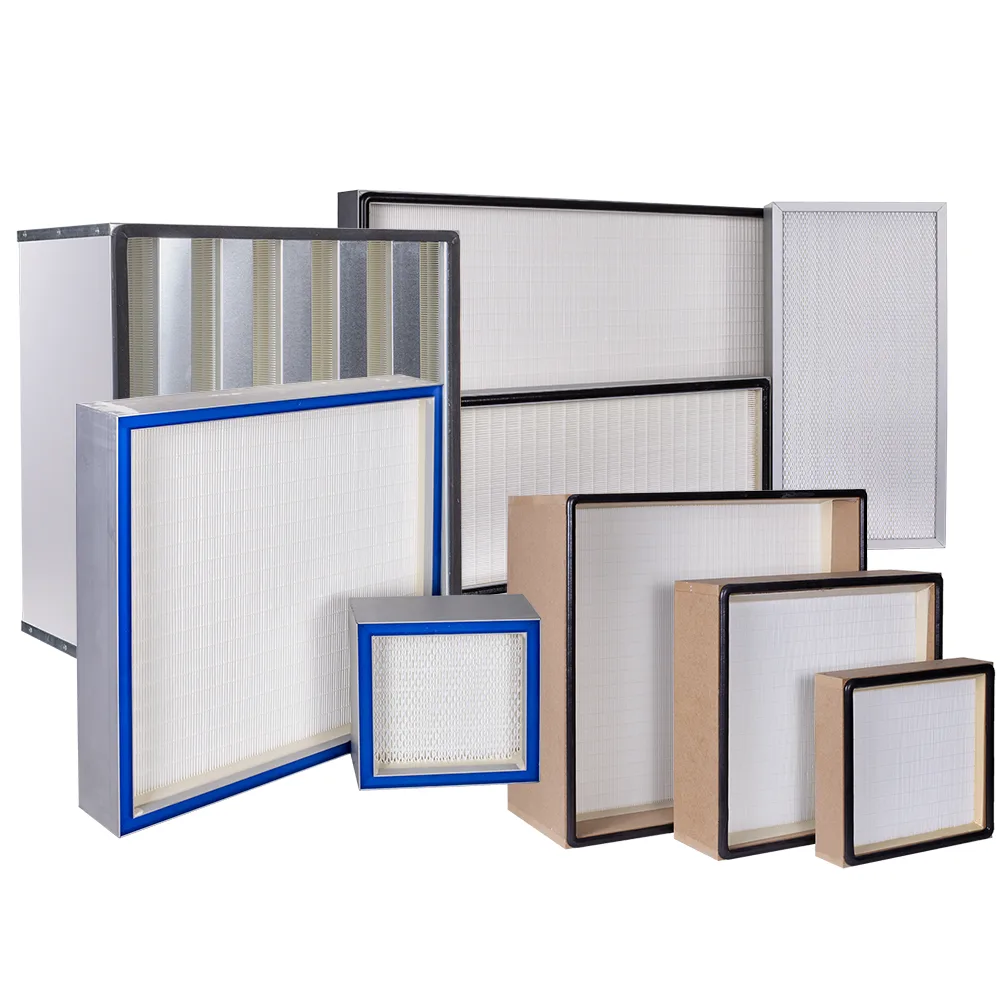

HEPA Filters

H10 to U15 high-efficiency filters for cleanrooms, hospitals and critical processes

HEPA stands for High Efficiency Particulate Air. A HEPA filter is the final stage of protection wherever the air itself must be clean: operating theatres, pharmaceutical production, laboratories and electronics manufacturing.

Our HEPA filters are classified according to EN 1822. An H13 filter retains at least 99.95% of particles at the most penetrating particle size (MPPS), and an H14 filter at least 99.995%. Every filter is supplied in the frame, gasket and depth your system requires.

Key features

High filtration efficiency with low initial pressure drop
Lower energy consumption over the filter's service life
Uniform air velocity across the filter face
Leak-free sealing between media and frame
Individual leak test according to EN 1822 (test report on request)
Multiple depths and custom dimensions available

Technical specifications

Filter class	H10 / H13 / H14 / U15 (EN 1822)
Frame	MDF / galvanised steel / aluminium
Media	High-grade glass fibre
Sealant	Two-component polyurethane

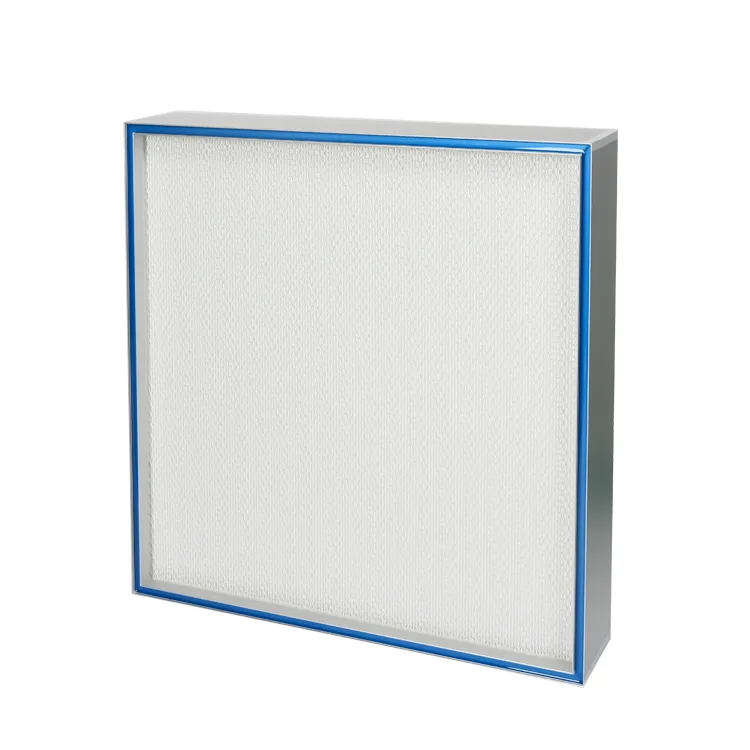

Gasket	EPDM / poured PU / gel seal
Face guard	Wire mesh, electrostatic powder coated

Applications

Microelectronics, medical and pharmaceutical production, food processing, aviation, microbiology and chemical industries; laboratories, hospitals and operating theatres; laminar flow units and fan filter units; nuclear facilities and research centres.

Product range

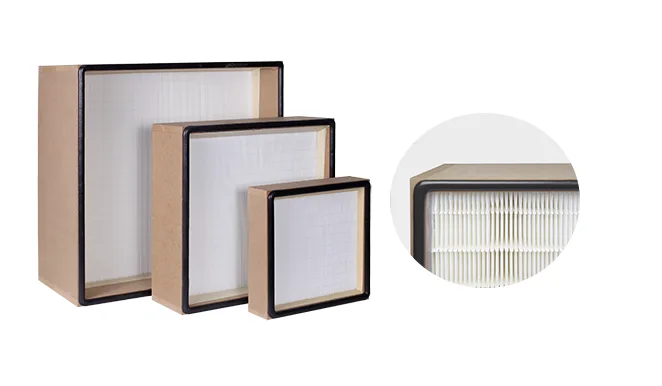

MDF-frame HEPA filters

Class EN 1822	Dimensions (W×H×D) mm	Airflow m³/h	Media area m²	Initial pressure drop Pa	Final pressure drop (max.) Pa	Efficiency @ MPPS %	Efficiency @ 0.3 µm DOP %
H13	305×305×78	150	2.25	100	600	99.95	99.75
H13	305×610×78	300	4.5	100	600	99.95	99.75
H13	457×457×78	340	5.1	100	600	99.95	99.75
H13	457×610×78	450	6.7	100	600	99.95	99.75
H13	535×535×78	460	6.9	100	600	99.95	99.75
H13	575×575×78	535	8	100	600	99.95	99.75
H13	610×610×78	600	9	100	600	99.95	99.75
H13	610×762×78	750	11.3	100	600	99.95	99.75
H13	610×915×78	900	13.5	100	600	99.95	99.75
H13	610×1220×78	1200	18	100	600	99.95	99.75
H14	305×305×78	150	2.25	125	600	99995	99975
H14	305×610×78	300	4.5	125	600	99995	99975
H14	457×457×78	340	5.1	125	600	99995	99975
H14	457×610×78	450	6.7	125	600	99995	99975
H14	535×535×78	465	6.9	125	600	99995	99975
H14	575×575×78	535	8	125	600	99995	99975
H14	610×610×78	600	9	125	600	99995	99975
H14	610×762×78	750	11.3	125	600	99995	99975
H14	610×915×78	900	13.5	125	600	99995	99975
H14	610×1220×78	1200	18	125	600	99995	99975
U15	305×305×78	150	2.2	140	600	99995	99.9999
U15	305×610×78	300	4.5	140	600	99995	99.9999
U15	457×457×78	340	5.1	140	600	99995	99.9999
U15	610×610×78	600	9	140	600	99995	99.9999
U15	610×762×78	750	11.3	140	600	99995	99.9999
U15	610×915×78	900	13.5	140	600	99995	99.9999
U15	610×1220×78	1200	18	140	600	99995	99.9999
H13	305×305×149	150	2.25	100	600	99.95	99.75
H13	305×610×149	300	4.5	100	600	99.95	99.75
H13	457×457×149	340	5.1	100	600	99.95	99.75
H13	457×610×149	450	6.7	100	600	99.95	99.75
H13	535×535×149	460	6.9	100	600	99.95	99.75
H13	575×575×149	535	8	100	600	99.95	99.75
H13	610×610×149	600	9	100	600	99.95	99.75
H13	610×762×149	750	11.3	100	600	99.95	99.75
H13	610×915×149	900	13.5	100	600	99.95	99.75
H13	610×1220×149	1200	18	100	600	99.95	99.75
H13	305×305×149	230	3.4	100	600	99.95	99.75
H13	305×610×149	450	6.8	100	600	99.95	99.75
H13	457×457×149	520	7.8	100	600	99.95	99.75
H13	457×610×149	670	10	100	600	99.95	99.75
H13	535×535×149	690	10.3	100	600	99.95	99.75
H13	575×575×149	800	12	100	600	99.95	99.75
H13	610×610×149	900	13.5	100	600	99.95	99.75
H13	610×762×149	1050	17	100	600	99.95	99.75
H13	610×915×149	1350	20.3	100	600	99.95	99.75
H13	610×1220×149	1800	27	100	600	99.95	99.75
H13	305×305×149	300	4.5	100	600	99.95	99.75
H13	305×610×149	600	9	100	600	99.95	99.75
H13	457×457×149	680	10.2	100	600	99.95	99.75
H13	457×610×149	680	13.4	100	600	99.95	99.75
H13	535×535×149	920	13.8	100	600	99.95	99.75
H13	575×575×149	1050	16	100	600	99.95	99.75
H13	610×610×149	1200	18	100	600	99.95	99.75
H13	610×762×149	1500	22.6	100	600	99.95	99.75
H13	610×915×149	1800	27	100	600	99.95	99.75
H13	610×1220×149	2400	36	100	600	99.95	99.75
H14	305×305×149	150	2.25	125	600	99995	99975
H14	305×610×149	300	4.5	125	600	99995	99975
H14	457×457×149	340	5.1	125	600	99995	99975
H14	457×610×149	450	6.7	125	600	99995	99975
H14	535×535×149	460	6.9	125	600	99995	99975
H14	575×575×149	535	8	125	600	99995	99975
H14	610×610×149	600	9	125	600	99995	99975
H14	610×762×149	750	11.3	125	600	99995	99975
H14	610×915×149	900	13.5	125	600	99995	99975
H14	610×1220×149	1200	18	125	600	99995	99975
H14	305×305×149	230	3.4	125	600	99995	99975
H14	305×610×149	450	6.8	125	600	99995	99975
H14	457×457×149	520	7.8	125	600	99995	99975
H14	457×610×149	670	10	125	600	99995	99975
H14	535×535×149	690	10.3	125	600	99995	99975
H14	575×575×149	800	12	125	600	99995	99975
H14	610×610×149	900	13.5	125	600	99995	99975
H14	610×762×149	1150	17	125	600	99995	99975
H14	610×915×149	1350	10.3	125	600	99995	99975
H14	610×1220×149	1800	27	125	600	99995	99975
H14	305×305×149	300	4.5	125	600	99995	99975
H14	305×610×149	600	9	125	600	99995	99975
H14	457×457×149	600	10.2	125	600	99995	99975
H14	457×610×149	890	13.4	125	600	99995	99975
H14	535×535×149	920	13.8	125	600	99995	99975
H14	575×575×149	1050	16	125	600	99995	99975
H14	610×610×149	1200	18	125	600	99995	99975
H14	610×762×149	1500	22.6	125	600	99995	99975
H14	610×915×149	1800	27	125	600	99995	99975
H14	610×1220×149	2400	36	125	600	99995	99975
H13	305×305×292	500	4.5	250	600	99.95	99.75
H13	457×457×292	1100	10.2	250	600	99.95	99.75
H13	305×610×292	1000	9	250	600	99.95	99.75
H13	457×610×292	1450	13.4	250	600	99.95	99.75
H13	610×610×292	2000	18	250	600	99.95	99.75
H13	305×305×292	620	5.7	250	600	99.95	99.75
H13	457×457×292	1400	12.75	250	600	99.95	99.75
H13	305×610×292	1220	11.25	250	600	99.95	99.75
H13	457×610×292	1800	16.75	250	600	99.95	99.75
H13	610×610×292	2400	22.5	250	600	99.95	99.75
H14	305×305×292	500	4.5	280	600	99995	99975
H14	457×457×292	1100	10.2	280	600	99995	99975
H14	305×610×292	1000	9	280	600	99995	99975
H14	457×610×292	1450	13.4	280	600	99995	99975
H14	610×610×292	2000	18	280	600	99995	99975
H14	305×305×292	620	5.7	280	600	99995	99975
H14	457×457×292	1400	12.75	280	600	99995	99975
H14	305×610×292	1220	11.25	280	600	99995	99975
H14	457×610×292	1800	16.75	280	600	99995	99975
H14	610×610×292	2400	22.5	280	600	99995	99975

Other dimensions and classes are available on request.

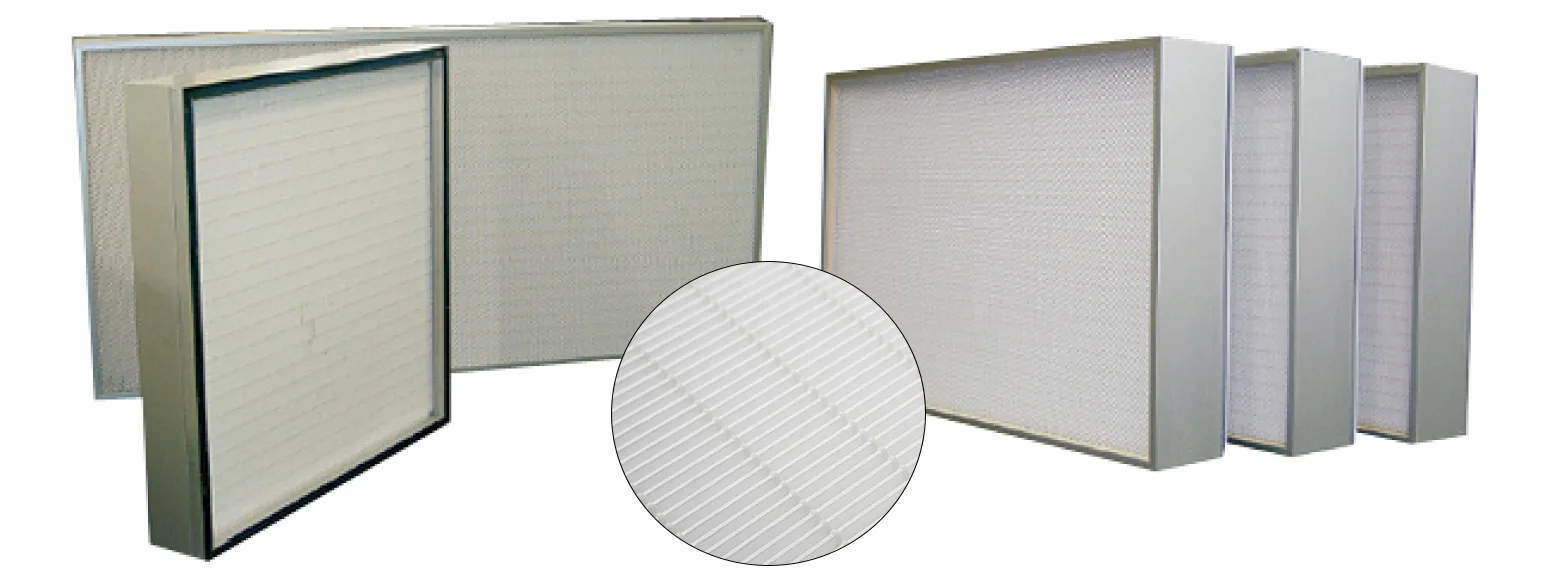

Aluminium-frame HEPA filters

Class EN 1822	Dimensions (W×H×D) mm	Airflow m³/h	Media area m²	Initial pressure drop Pa	Final pressure drop (max.) Pa	Efficiency @ MPPS %	Efficiency @ 0.3 µm DOP %
H13	305×305×69	150	2.25	100	600	99.95	99.75
H13	305×610×69	300	4.5	100	600	99.95	99.75
H13	457×457×69	340	5.1	100	600	99.95	99.75
H13	457×610×69	450	6.7	100	600	99.95	99.75
H13	535×535×69	460	6.9	100	600	99.95	99.75
H13	575×575×69	535	8	100	600	99.95	99.75
H13	610×610×69	600	9	100	600	99.95	99.75
H13	610×762×69	750	11.3	100	600	99.95	99.75
H13	610×915×69	900	13.5	100	600	99.95	99.75
H13	610×1220×69	1200	18	100	600	99.95	99.75
H14	305×305×69	150	2.25	125	600	99995	99975
H14	305×610×69	300	4.5	125	600	99995	99975
H14	457×457×69	340	5.1	125	600	99995	99975
H14	457×610×69	450	6.7	125	600	99.95	99975
H14	535×535×69	465	6.9	125	600	99995	99975
H14	575×575×69	535	8	125	600	99995	99975
H14	610×610×69	600	9	125	600	99995	99975
H14	610×762×69	750	11.3	125	600	99995	99975
H14	610×915×69	900	13.5	125	600	99995	99975
H14	610×1220×69	1200	18	125	600	99995	99975
U15	305×305×69	150	2.2	140	600	99.9995	99.9975
U15	305×610×69	300	4.5	140	600	99.9995	99.9975
U15	457×457×69	340	5.1	140	600	99.9995	99.9975
U15	610×610×69	600	9	140	600	99.9995	99.9975
U15	610×762×69	750	13.5	140	600	99.9995	99.9975
U15	610×1220×69	1200	18	140	600	99.9995	99.9975
H13	305×305×78	150	2.25	100	600	99.95	99.75
H13	305×610×78	300	4.5	100	600	99.95	99.75
H13	457×457×78	340	5.1	100	600	99.95	99.75
H13	457×457×78	450	6.7	100	600	99.95	99.75
H13	535×535×78	460	6.9	100	600	99.95	99.75
H13	575×575×78	535	8	100	600	99.95	99.75
H13	610×610×78	600	9	100	600	99.95	99.75
H13	610×762×78	750	11.3	100	600	99.95	99.75
H13	610×915×78	900	13.5	100	600	99.95	99.75
H13	610×1220×78	1200	18	100	600	99.95	99.75
H14	305×305×78	150	2.25	125	600	99995	99975
H14	305×610×78	300	4.5	125	600	99995	99975
H14	457×457×78	340	5.1	125	600	99995	99975
H14	457×610×78	450	6.7	125	600	99995	99975
H14	535×535×78	465	6.9	125	600	99995	99975
H14	575×575×78	535	8	125	600	99995	99975
H14	610×610×78	600	9	125	600	99995	99975
H14	610×762×78	750	11.3	125	600	99995	99975
H14	610×915×78	900	13.5	125	600	99995	99975
H14	610×1220×78	1200	18	125	600	99995	99975
U15	305×305×78	150	2.2	140	600	99.9995	99.9975
U15	305×610×78	300	4.5	140	600	99.9995	99.9975
U15	457×457×78	340	5.1	140	600	99.9995	99.9975
U15	610×610×78	600	9	140	600	99.9995	99.9975
U15	610×762×78	750	11.3	140	600	99.9995	99.9975
U15	610×915×78	900	13.5	140	600	99.9995	99.9975
U15	610×1220×78	1200	18	140	600	99.9995	99.9975
H13	305×305×149	150	2.25	100	600	99.95	99.95
H13	305×610×149	300	4.5	100	600	99.95	99.95
H13	457×457×149	340	5.1	100	600	99.95	99.95
H13	457×610×149	450	6.7	100	600	99.95	99.95
H13	535×535×149	460	6.9	100	600	99.95	99.95
H13	575×575×149	535	8	100	600	99.95	99.95
H13	610×610×149	600	9	100	600	99.95	99.95
H13	610×762×149	750	11.3	100	600	99.95	99.95
H13	610×915×149	900	13.5	100	600	99.95	99.95
H13	610×1220×149	1200	18	100	600	99.95	99.95
H13	305×305×149	230	3.4	100	600	99.95	99.95
H13	305×610×149	450	6.8	100	600	99.95	99.95
H13	457×457×149	520	7.8	100	600	99.95	99.95
H13	457×610×149	670	10	100	600	99.95	99.95
H13	535×535×149	690	10.3	100	600	99.95	99.95
H13	575×575×149	800	12	100	600	99.95	99.95
H13	610×610×149	900	13.5	100	600	99.95	99.95
H13	610×762×149	1150	17	100	600	99.95	99.95
H13	610×915×149	1350	20.3	100	600	99.95	99.95
H13	610×915×149	1800	27	100	600	99.95	99.95
H13	305×305×149	300	4.5	100	600	99.95	99.95
H13	305×610×149	600	9	100	600	99.95	99.95
H13	457×457×149	680	10.2	100	600	99.95	99.95
H13	457×610×149	890	13.4	100	600	99.95	99.95
H13	535×535×149	920	13.8	100	600	99.95	99.95
H13	575×575×149	1050	16	100	600	99.95	99.95
H13	610×610×149	1200	18	100	600	99.95	99.95
H13	610×762×149	1500	22.6	100	600	99.95	99.95
H13	610×915×149	1800	27	100	600	99.95	99.95
H13	610×1220×149	2400	36	100	600	99.95	99.95
H14	305×305×149	150	2.25	125	600	99995	99995
H14	305×610×149	300	4.5	125	600	99995	99995
H14	457×457×149	340	5.1	125	600	99995	99995
H14	457×610×149	450	6.7	125	600	99995	99995
H14	535×535×149	460	6.9	125	600	99995	99995
H14	575×575×149	535	8	125	600	99995	99995
H14	610×610×149	600	9	125	60	99995	99995
H14	610×762×149	750	11.3	125	600	99995	99995
H14	610×915×149	900	13.5	125	600	99995	99995
H14	610×1220×149	1200	18	125	600	99995	99995
H14	305×305×149	230	3.4	125	600	99995	99995
H14	305×610×149	450	6.8	125	600	99995	99995
H14	457×457×149	520	7.8	125	600	99995	99995
H14	457×610×149	670	10	125	600	99995	99995
H14	535×535×149	690	10.3	125	600	99995	99995
H14	575×575×149	800	12	125	600	99995	99995
H14	610×610×149	900	13.5	125	600	99995	99995
H14	610×762×149	1150	17	125	600	99995	99995
H14	610×915×149	1350	20.3	125	600	99995	99995
H14	610×1220×149	1800	27	125	600	99995	99995
H14	305×305×149	300	4.5	125	600	99995	99995
H14	305×610×149	600	9	125	600	99995	99995
H14	457×457×149	680	10.2	125	600	99995	99995
H14	457×610×149	890	13.4	125	600	99995	99995
H14	535×535×149	920	13.8	125	600	99995	99995
H14	575×575×149	1050	16	125	600	99995	99995
H14	610×610×149	1200	18	125	600	99995	99995
H14	610×762×149	1500	22.6	125	600	99995	99995
H14	610×915×149	1800	27	125	600	99995	99995
H14	610×1220×149	2400	36	125	600	99995	99995

Other dimensions and classes are available on request.

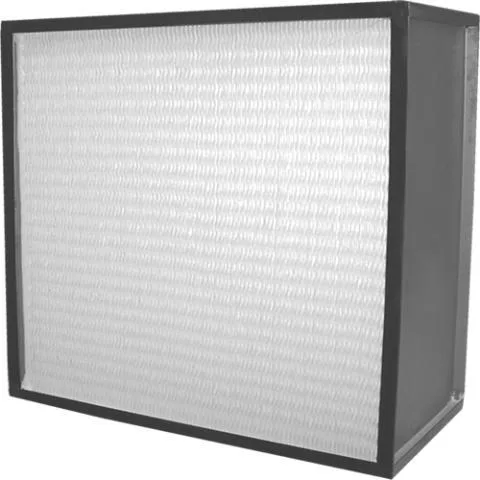

Galvanised-frame HEPA filters

Class EN 1822	Dimensions (W×H×D) mm	Pleat depth mm	Airflow m³/h	Media area m²	Initial pressure drop Pa	Final pressure drop (max.) Pa	Efficiency @ MPPS %	Efficiency @ 0.3 µm DOP %
H13	305×305×292	100	500	4.5	250	600	99.95	99.75
H13	457×457×292	100	1100	10.2	250	600	99.95	99.75
H13	305×610×292	100	1000	9	250	600	99.95	99.75
H13	457×610×292	100	1450	13.4	250	600	99.95	99.75
H13	610×610×292	100	2000	18	250	600	99.95	99.75
H13	305×305×292	125	620	5.7	250	600	99.95	99.75
H13	457×457×292	125	1400	12.75	250	600	99.95	99.75
H13	305×610×292	125	1220	11.25	250	600	99.95	99.75
H13	457×610×292	125	1800	16.75	250	600	99.95	99.75
H13	610×610×292	125	2400	22.5	250	600	99.95	99.75
H14	305×305×292	100	500	4.5	280	600	99995	99975
H14	457×457×292	100	1100	10.2	280	600	99995	99975
H14	305×610×292	100	1000	9	280	600	99995	99975
H14	457×610×292	100	1450	13.4	280	600	99995	99975
H14	610×610×292	100	2000	18	280	600	99995	99975
H14	305×305×292	125	620	5.7	280	600	99995	99975
H14	457×457×292	125	1400	12.75	280	600	99995	99975
H14	305×610×292	125	1220	11.25	280	600	99995	99975
H14	457×610×292	125	1800	16.75	280	600	99995	99975
H14	610×610×292	125	2400	22.5	280	600	99995	99975

Other dimensions and classes are available on request.

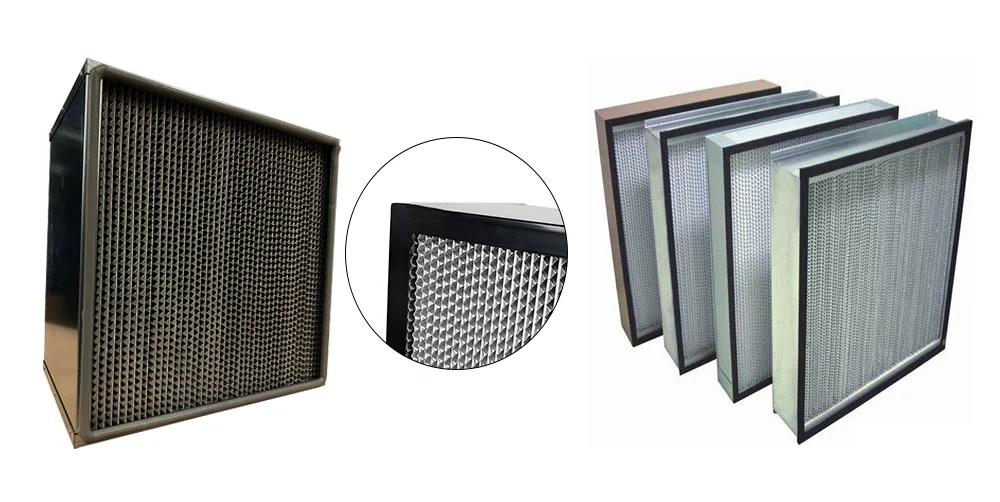

Aluminium-separator HEPA filters

Class EN 1822	Dimensions (W×H×D) mm	Airflow m³/h	Media area m²	Initial pressure drop Pa	Final pressure drop (max.) Pa	Efficiency @ MPPS %	Efficiency @ 0.3 µm DOP %
H10	305×305×149	450	4	220	600	85	85
H10	305×610×149	850	8	220	600	85	85
H10	610×610×149	1750	15	220	600	85	85
H10	305×305×292	750	2022-05-07 00:00:00	200	600	85	85
H10	305×610×292	1500	15	200	600	85	85
H10	610×610×292	3000	30	200	600	85	85
H13	305×305×149	450	4	250	600	99.95	99.75
H13	305×610×149	850	8	250	600	99.95	99.75
H13	610×610×149	1750	15	250	600	99.95	99.75
H13	305×305×292	750	2022-05-07 00:00:00	240	600	99.95	99.75
H13	305×610×292	1500	15	240	600	99.95	99.75
H13	610×610×292	3000	30	240	600	99.95	99.75
H14	305×305×149	450	4	280	600	99.95	99.75
H14	305×610×149	850	8	280	600	99.95	99.75
H14	610×610×149	1750	15	280	600	99.95	99.75
H14	305×305×292	750	2022-05-07 00:00:00	270	600	99.95	99.75
H14	305×610×292	1500	15	270	600	99.95	99.75
H14	610×610×292	3000	30	270	600	99.95	99.75

Other dimensions and classes are available on request.

Gel-seal HEPA filters

Need a quote or a non-standard size?

Send us the dimensions, filter class and quantity. We reply with price and delivery time within one business day.

Request a quote

HVAC Filters

Air Distribution

Industrial Filters

Cleanroom Equipment

HEPA Filters

Key features

Technical specifications

Applications

Product range

MDF-frame HEPA filters

Aluminium-frame HEPA filters

Galvanised-frame HEPA filters

Aluminium-separator HEPA filters

Gel-seal HEPA filters

Need a quote or a non-standard size?
