Grilles
Supply, return and transfer grilles for walls, ceilings, doors and ducts
Grilles cover the openings where air enters or leaves a space. Adjustable blades direct supply air; fixed or egg-crate cores maximise the free area for return and extract air.
We supply single- and double-deflection grilles, linear, egg-crate, perforated and door grilles, together with plenum boxes and access doors for complete installations.
Materials and options
| Material | Extruded aluminium; galvanised steel for plenum boxes |
|---|---|
| Standard finish | Electrostatic powder coating, RAL 9010 white |
| Other colours | Any RAL colour on request |
| Options | Opposed-blade volume damper, filter frame, plenum box |
| Mounting | Visible screw, concealed screw or clip fixing |
Product range

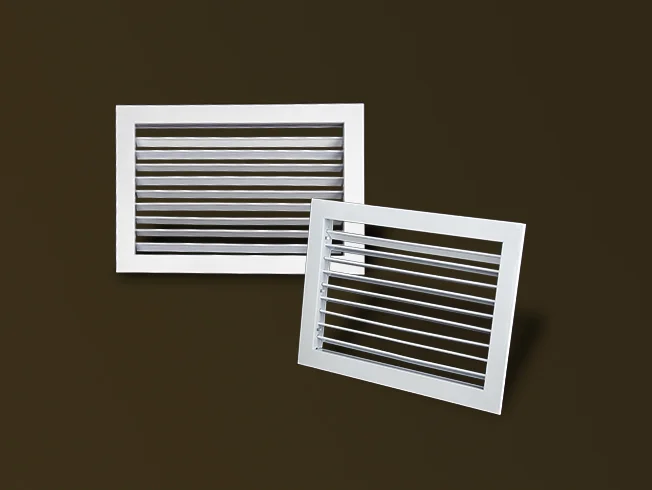

Single-deflection grille
One row of individually adjustable blades for setting the air direction. For wall supply and return in offices and homes.

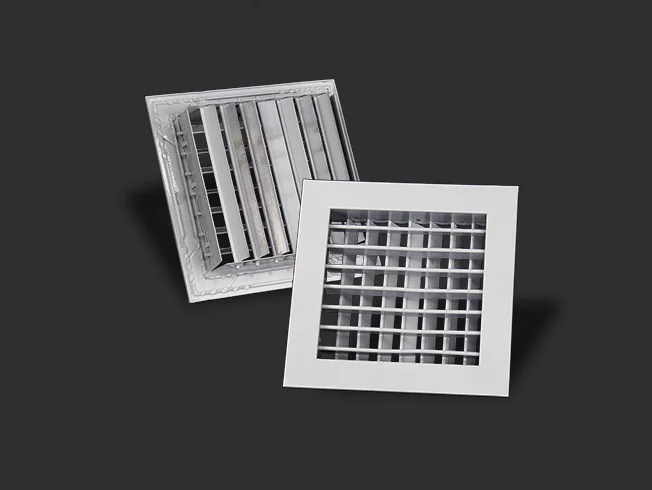

Double-deflection grille
Two rows of adjustable blades control both vertical and horizontal throw. The most flexible wall supply grille.

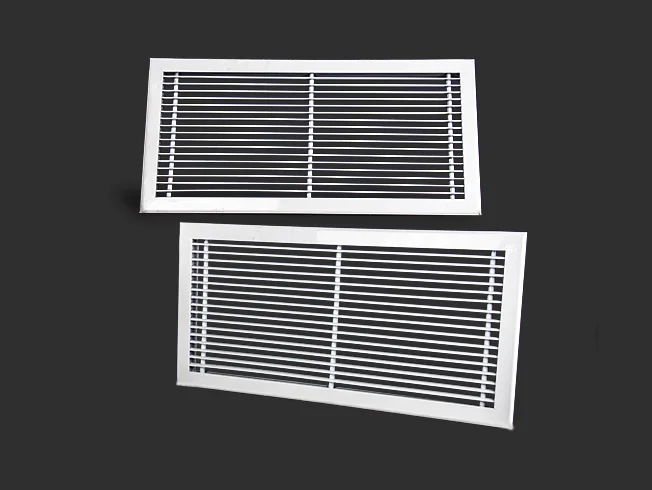

Linear grille
Fixed linear blades for a clean, continuous look. Used on walls, sills, floors and ceilings.

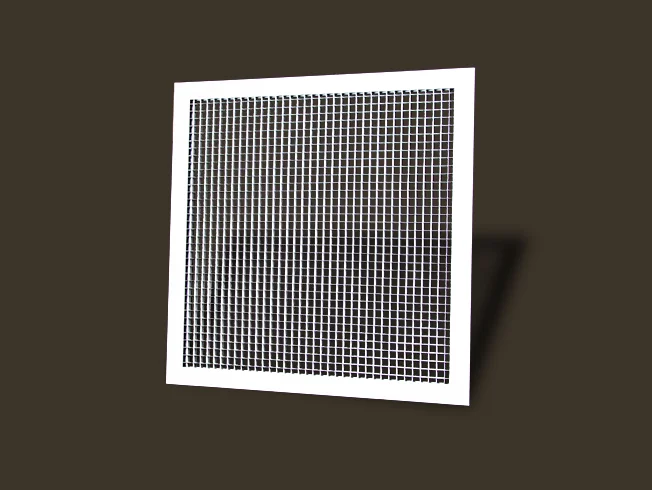

Egg-crate grille
Aluminium honeycomb core with a high free area and low pressure drop. The standard return grille for suspended ceilings.

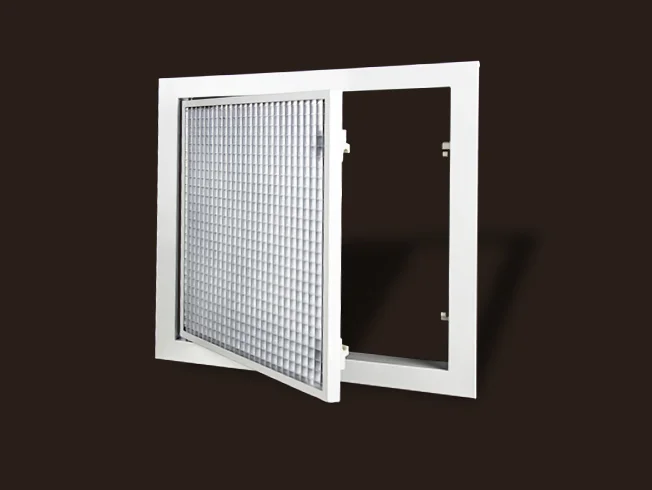

Hinged egg-crate grille
Egg-crate grille with a hinged core and filter frame, so the filter behind it can be changed without tools.
Perforated grille
Perforated face plate that hides the duct and blends into the ceiling. For supply or return air.

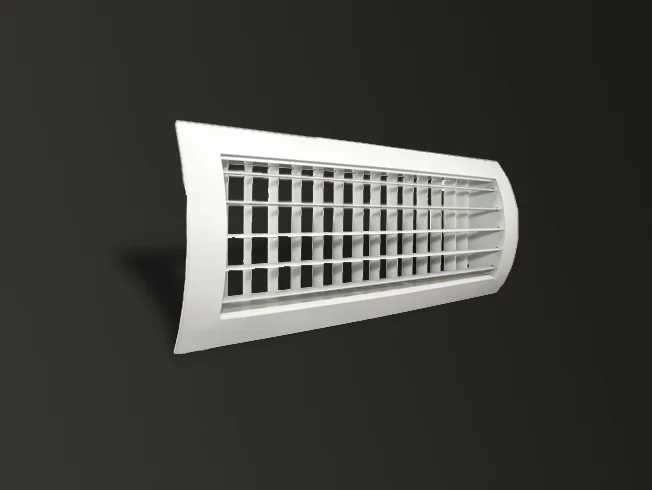

Round duct grille
Curved grille that mounts directly onto round spiral ducts, with adjustable blades. For exposed ductwork in shops, warehouses and industrial spaces.

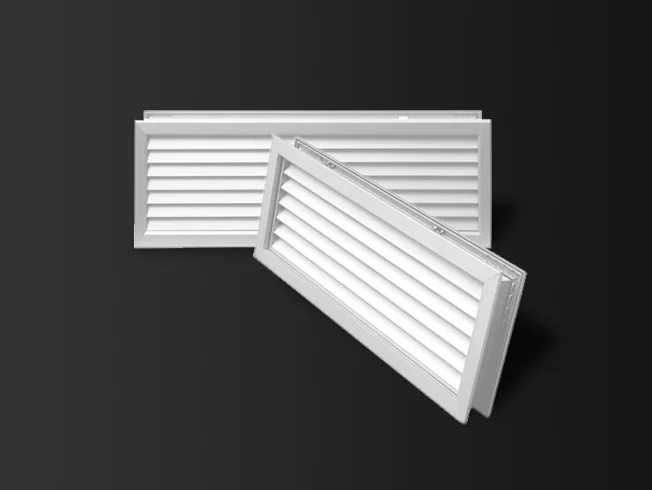

Door grille
Sight-proof V-blade grille that lets air pass between rooms through a door. Used for transfer air in offices, hotels and bathrooms.

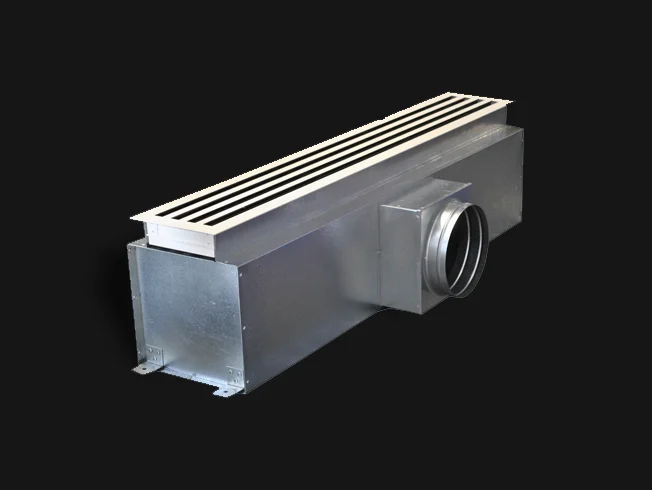

Plenum box
Galvanised steel box that connects a diffuser or grille to the duct and evens out airflow. Side or top spigot, with an optional damper.

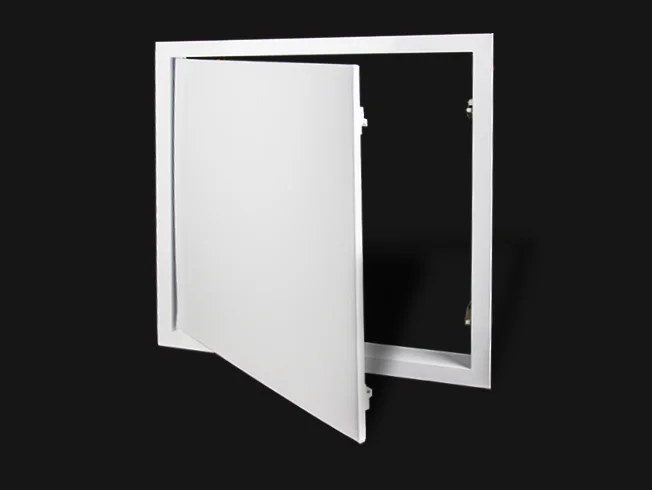

Access door
Hinged ceiling or wall panel that gives service access to ducts, dampers and equipment while staying flush with the surface.
Need a quote or a non-standard size?
Send us the dimensions, filter class and quantity. We reply with price and delivery time within one business day.
